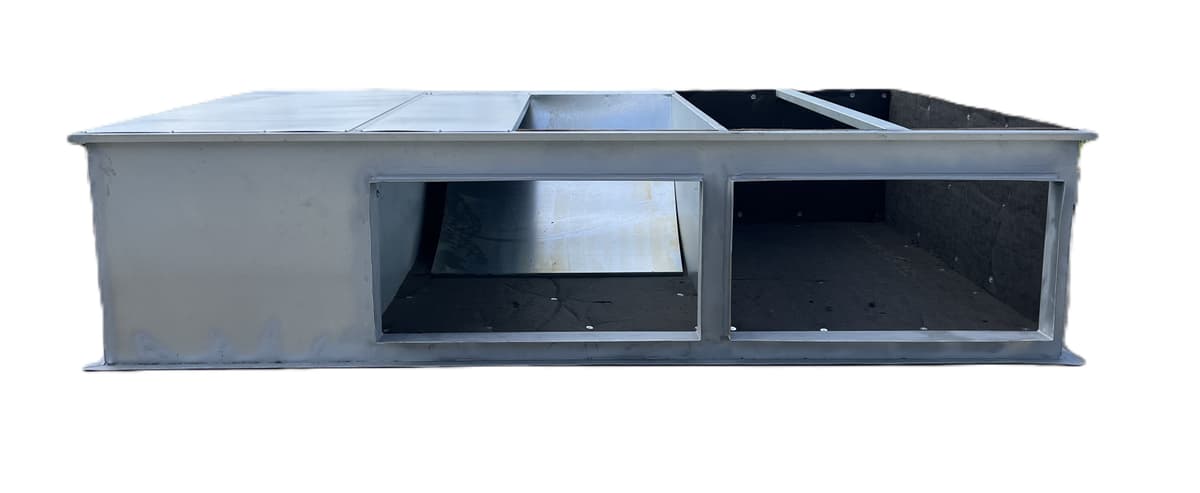

Horizontal Discharge Package curb

Price Range $
0 - 0

About

*Note: Horizontal curbs are designed & built per unit/job application, type of installation, required orientation, etc.. & are priced to the design. Any changes to a drawing initially submitted, must be revised prior to approval along with revised quote to reflect the desired changes. Min. height is determined by the type of installation, base rail depth, required opening sizes, min. roof termination height &/or duct elevation height, etc…

Features

Standard Features

18ga. OR greater, G-90 fully welded perimeter
20ga. min. vertical cross support/dividers tack welded in
Complete curb interior insulated with 2" 1.5# acoustical liner (glued & pinned)
20ga. non-insulated interior supply radius screwed in within the insulated supply plenum
20ga. min. solid base tack welded in at the roof termination height

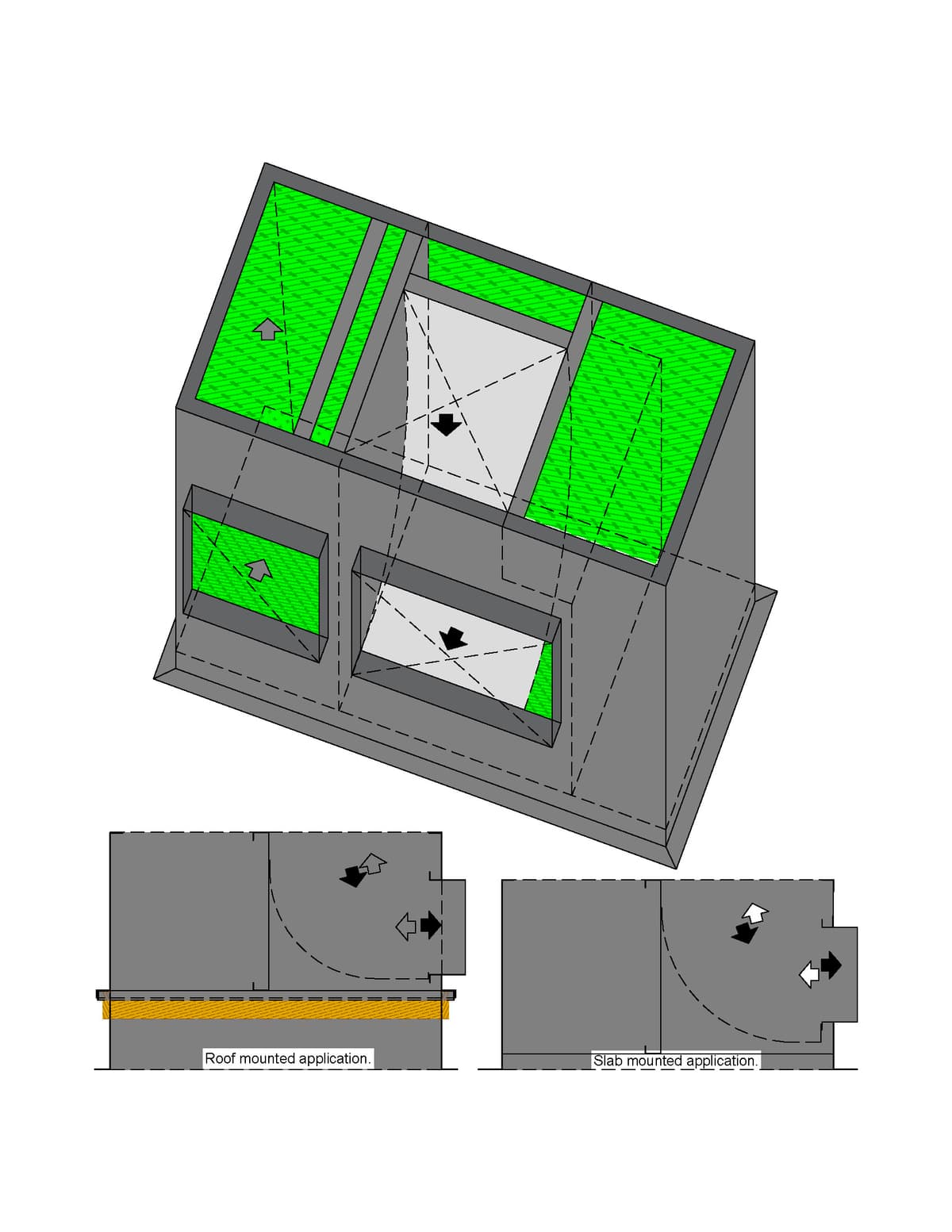

Designed for roof mount application with 1"x4" pressure treated nailer at 10" roof termination height
1/4" x 1 1/2" neoprene gasket material supplied loose for field installation

Optional Features

Heavy gauge galvanized steel
Aluminum construction
Stainless Steel, 304-2B construction
Interior metal liner (same type as exterior)
Pressure treated wood nailer (roof mounted applications)
Increased roof termination height (specify height)
Increased duct elevation from the curb base (specify)
Extended base flanges (specify size)
