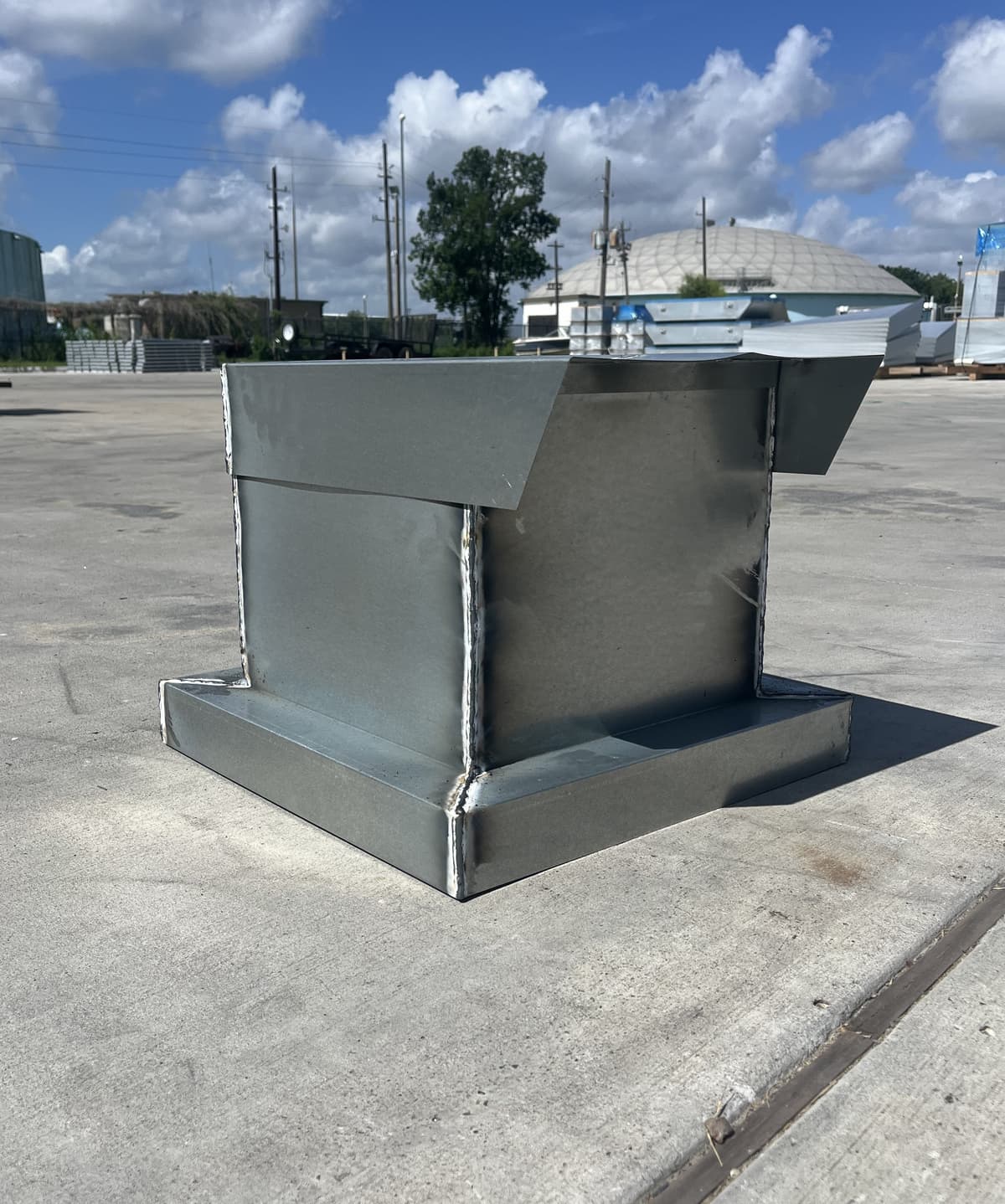

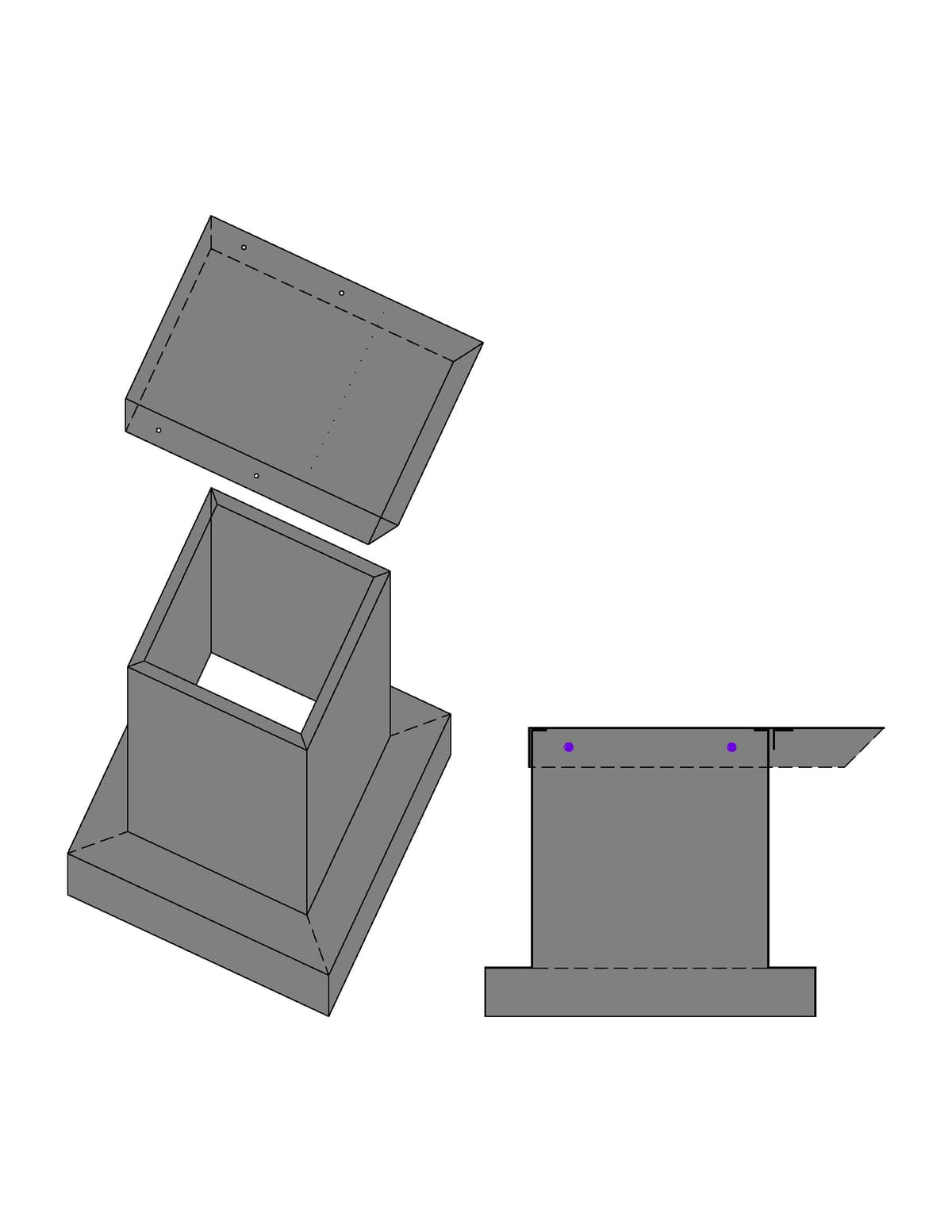

Pipe Jack Curb Mounted

CCP-PJCM

CCP-PJCM

Note: The pipe jack curb capping base must be approx. 1 1/4″ larger than a new curb (sold seperately) to allow for roofing material OR 1/2″ larger than the existing perimeter with roofing material.

Pipe Jack Curb Mounted

Standard Features

  • 20ga. G90 min. construction
  • 8" min. height
  • Continuous welded seams coated with corrosion inhibiting compound
  • 2" deep cap factory screwed on, on 2 sides
  • 2 1/2" deep, curb capping depth
  • 1"x1" angle tack welded under the cap at the brim side with 1/4" clearance

Optional Features

  • Heavy gauge galvanized steel
  • .080 Aluminum construction
  • 20ga. Stainless Steel, 304-2B construction
  • Extended cap depth (specify depth)
  • Extended curb capping depth (specify size)
