Final Filter Rooftop Package Curb
Price Range $
0 - 0About
*Full perimeter for small package unit applications & only on the supply where required for larger unit applications. **Supply duct cannot be dropped through from the top, as the filter tracking obstructs the pathway. The return duct may drop from the top OR connect at the base, the same as the supply. HEPA filtration is NOT available.
Features
Standard Features
18ga. G90 min. exterior construction
20ga. min. interior metal liner where required
10" min. roof termination height
Interior perimeter walls insulated with 1 1/2" 3lb. rigid board (R6) insulation
Continuous welded seams coated with corrosion inhibiting compound
Interior dividers & panels insulated with 2" -1 1/2lb. liner installed on opposite sides of air flow on supply (no insulation in supply air stream)
Hinged double wall access door with manual knobs installed
Continuous drip edge tack welded above the door opening
1"x4" pressure treated wood nailer installed at the 10" roof termination height
2" base mounting flanges on all four sides
Designed for 4" or 12" deep, MERV-14 nominal sized filters
Initial set of filters provided for start-up
Factory openings maintained at the base for field duct connection
Optional Features
Increased roof termination height (specify)
Pitched for sloped roof application
0"-3" Magnehelic gauge factory installed
Heavy gauge galvanized steel
Aluminum construction
Stainless Steel, 304-2B construction
Extended base flanges (specify size)
No filters supplied with the curb

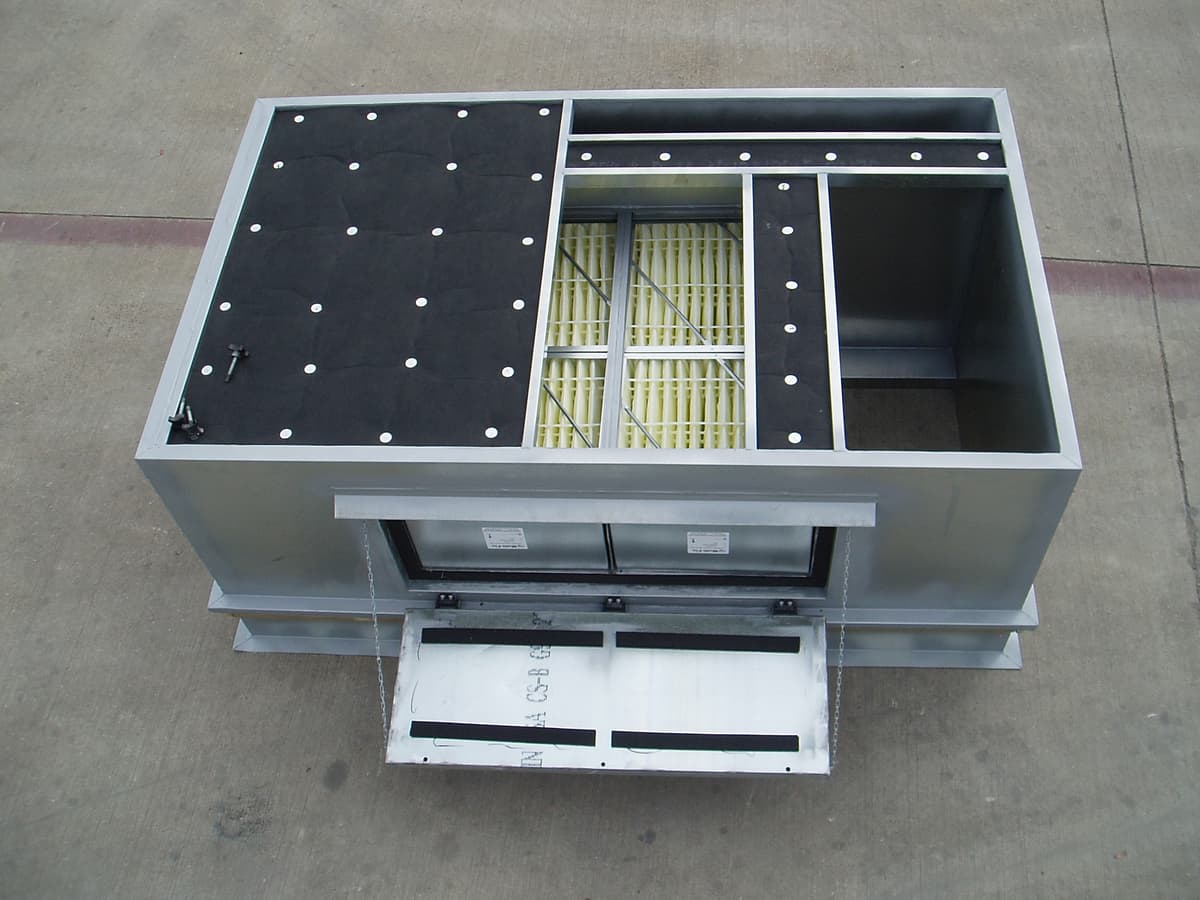

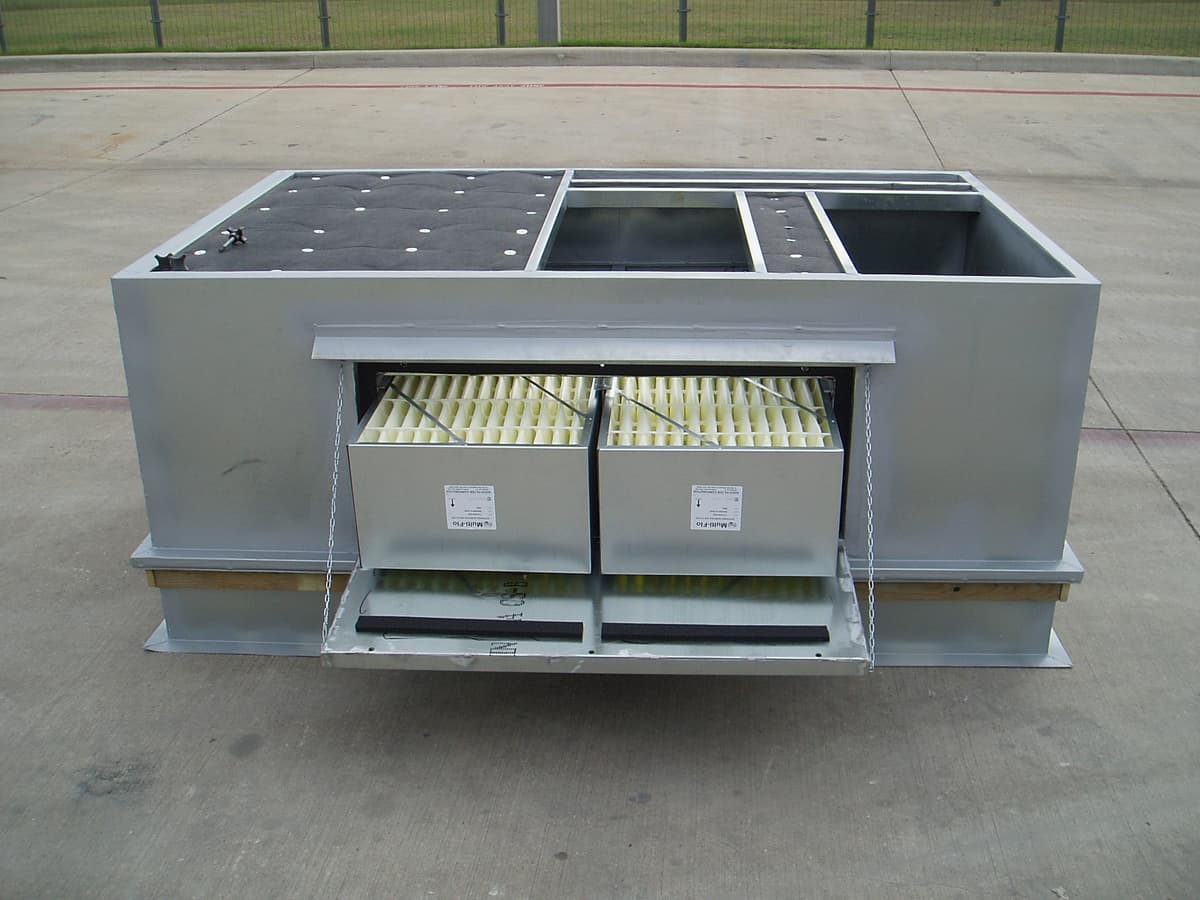

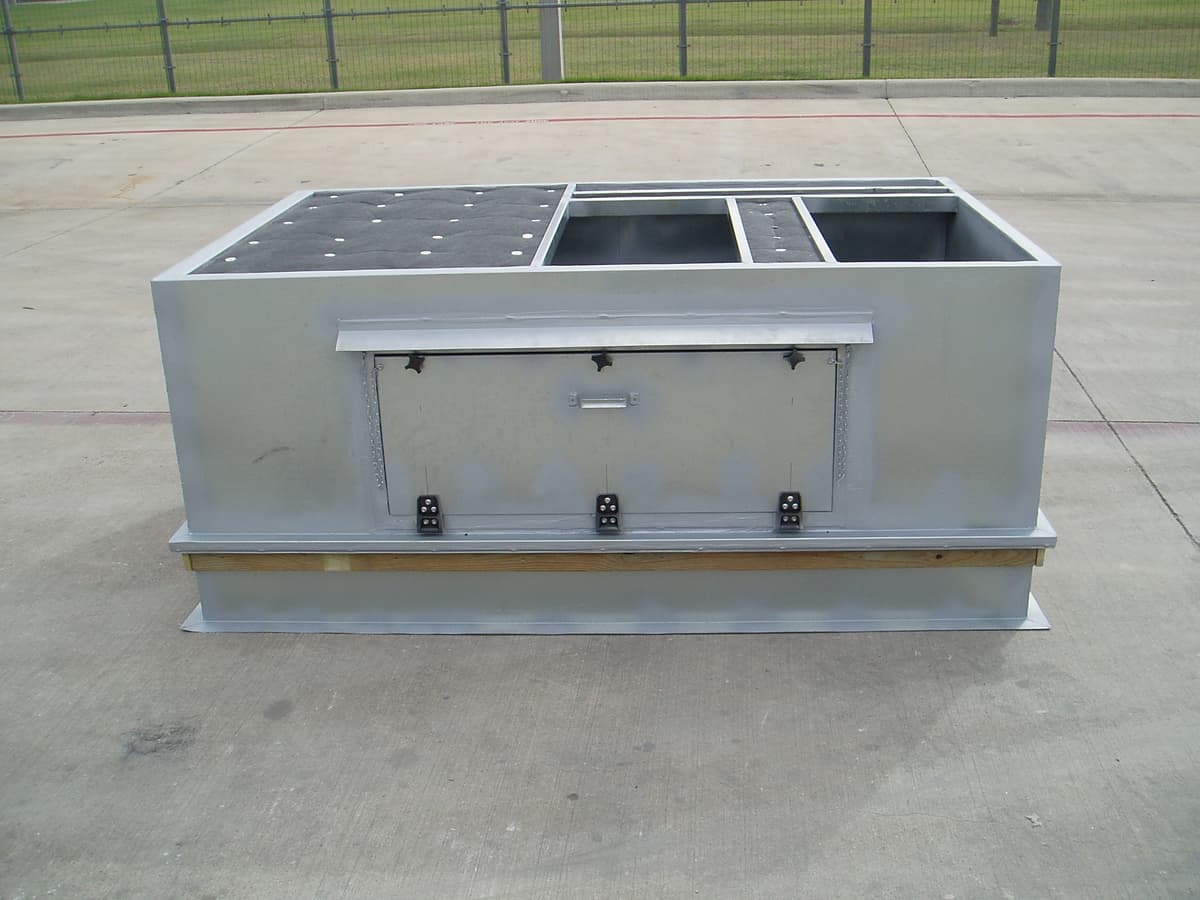

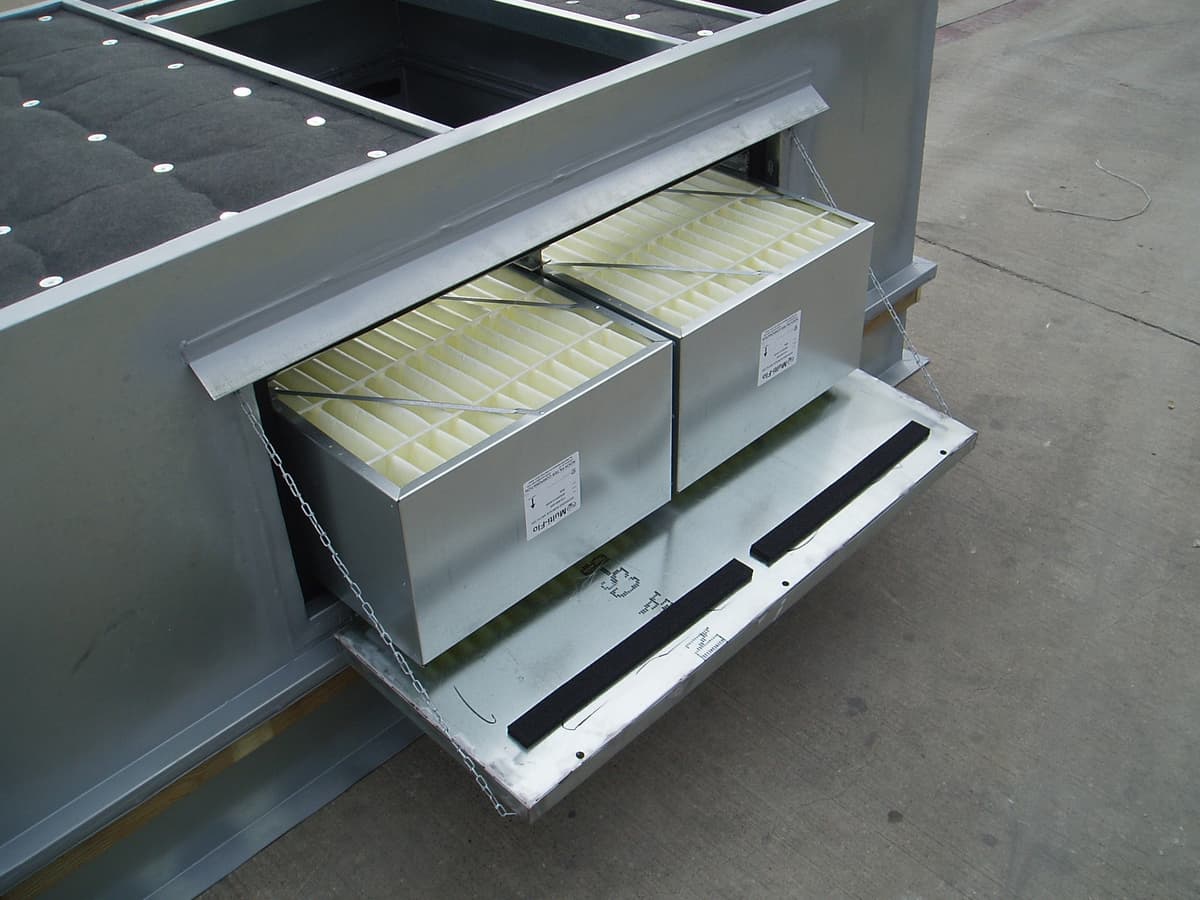

Images
