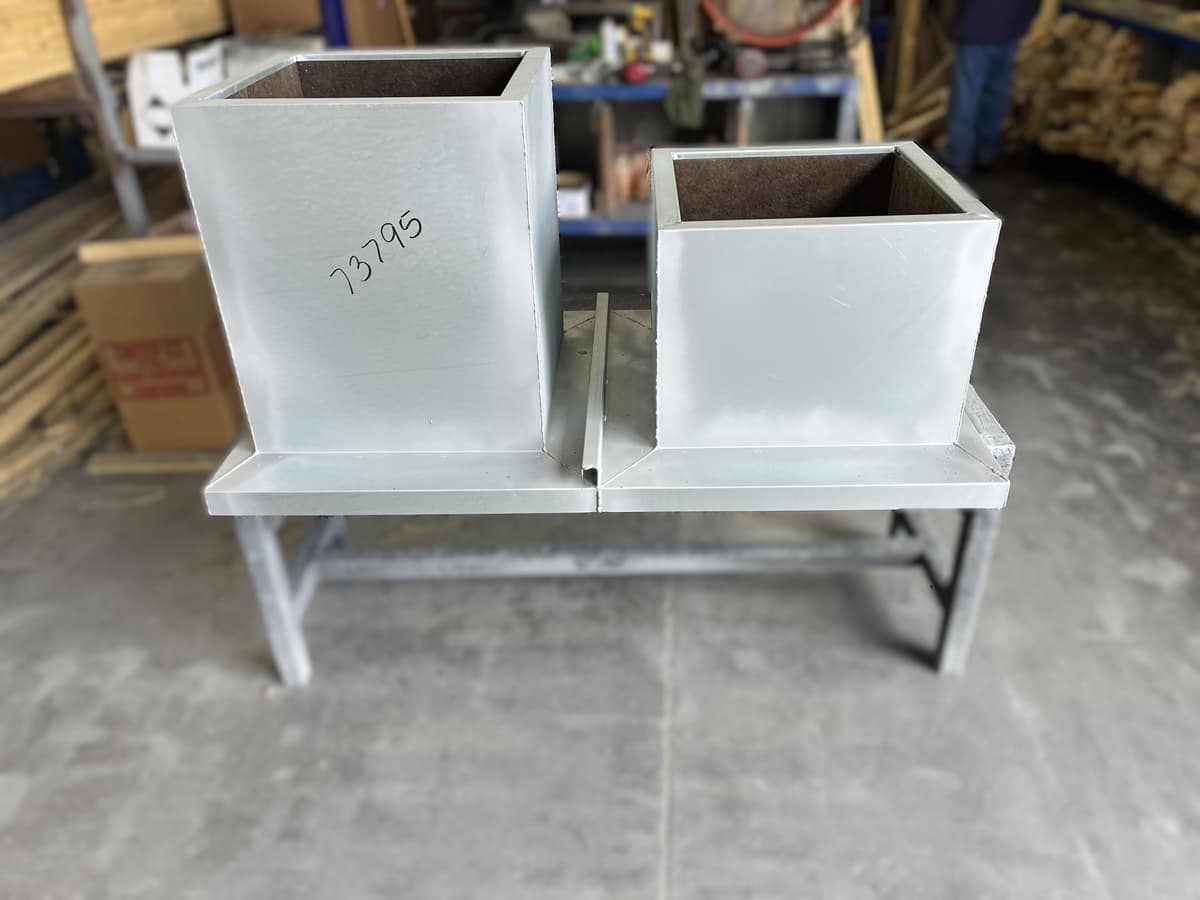

Double Curb Adapter

CCP-DCA

CCP-DCA

Double Curb Adapter

Standard Features

  • 18ga. G90 min. construction
  • Continuous welded seams coated with corrosion inhibiting compound
  • Neoprene gasket material provided for top mounting surface seal
  • Note: Top I.D. throat is approx. 3.5" less than the O.D.

Optional Features

  • Heavy gauge galvanized steel
  • 18ga. AZ55 "galvalume" construction
  • .080 Aluminum construction
  • 18ga. Stainless Steel, 304-2B construction
  • Gasket material for existing curb perimeter surface

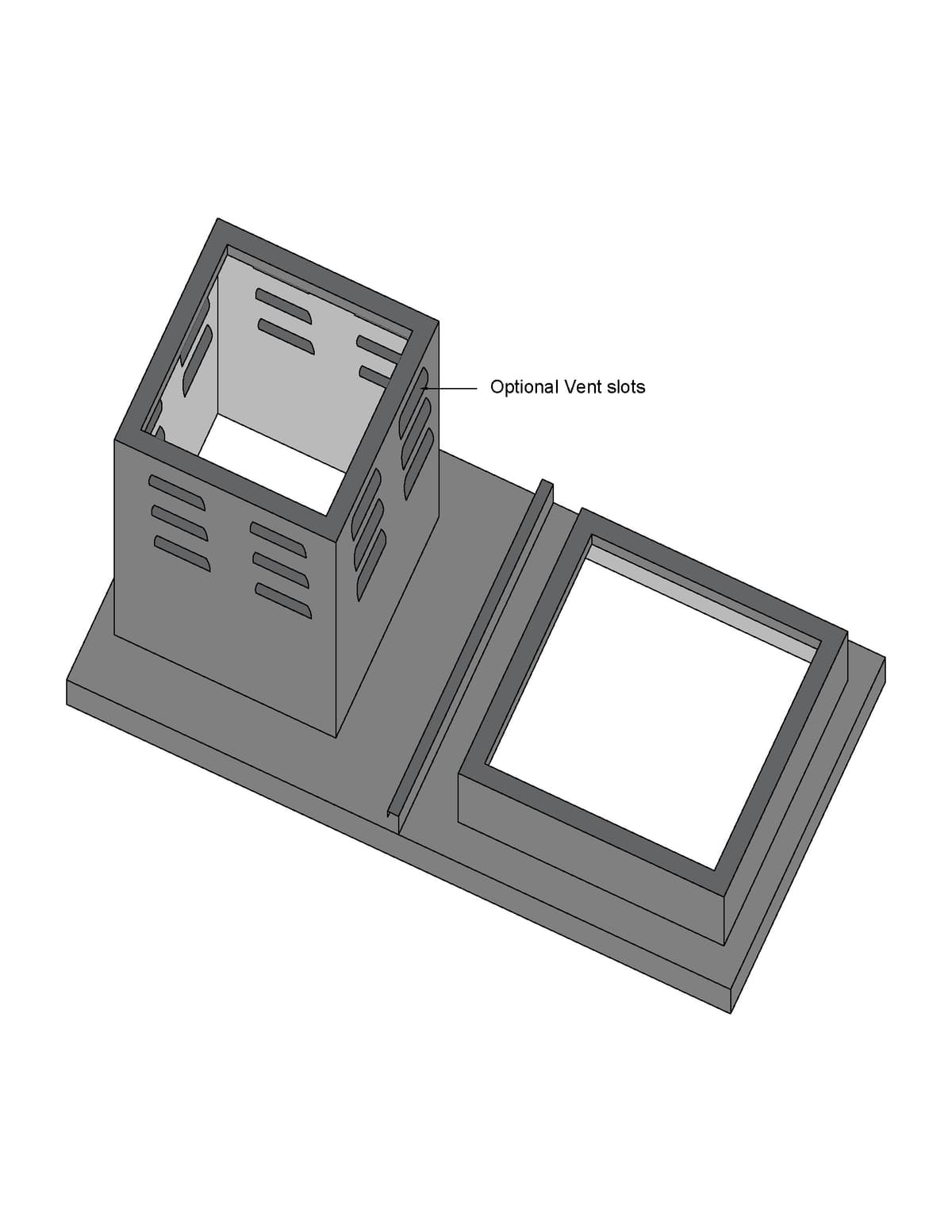

  • Vent slots on Exhaust stack (H2 = min. 10" high)
  • Vent slots on both stacks (H1&H2 = min. 10" high)
  • Extended curb capping depth (specify size)
  • Note: Vents slots are only available in 18ga. G90 OR 18ga. AZ55 construction
